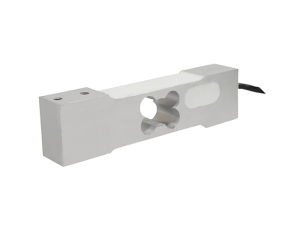

MK 1042
SPECIFICATIONS |
|
| Rated capacities (Emax) | 8kg, 10kg, 15kg, 20kg, 30kg, 50kg, 60kg, 75kg, 100kg, 200kg |
| Temperature, compensated | -10°C ~ +40°C |
| Rated output | 2.0 ± 0.2mV/V |
| Temperature, operating | 20°C ~ +50°C |
| Accuracy class | OIML C3 |
| Maximum safe overload | 150% Emax |
| Ultimate overload | 300% Emax |
| Excitation, recommended | 10V DC |
| Excitation, maximum | 15V DC |
| Input resistance | 404 ±15Ω |
| Output resistance | 350 ±3Ω |
| Max platform size | 300 x 400mm |
