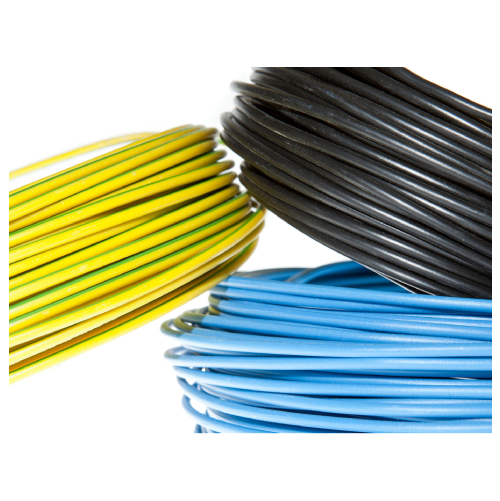

Loadcell Cable
TECHNICAL SPECIFICATIONS |
||||||
| Type | BLCC-1 | BLCC-2 | BLCC-Ex | BLCC-S | ||
| Construction | 6 x 0,14 mm² | 6 x 0,34 mm² | 6 x 0,34 mm² | 6 x 0,14 mm² | ||
| Conductor | Stranded tinned copper wires ( IEC/EN 228, VDE 0295, HD 383, BS 6360 Class 5) |
|||||
| Insulation | PVC (EN 50290-2, HD 21.1.S4, VDE 0281-TI2) | |||||
| Nominal insulation thickness | 0.26 mm | 0.42 mm | 0.26 mm | |||
| Core colors | Blue | Blue | Yellow | Black | ||
| Overall shielding | AL-PES tape | |||||
| Screen | Tinned copper wire braiding (80% cov.) | |||||
| Operating voltage (20°C) | 300 V | |||||
| Conductor resistance (max) at 20°C | 138 Ω/km | 57.1 Ω/km | 138 Ω/km | |||
| Insulation resistance (min) at 20°C | 200 MΩ x km | |||||
| Min. bending radius (20°C) | Fixed: 7.5 x Cable diameter Flexible: 15 x Cable diameter | |||||
| Temperature range | Fixed : -30°C….. +70°C Flexible : -5°C….+70°C | |||||
| Flame test | IEC/EN 60332-1 | |||||
